Boiler General View - Air Heater / SCR side
Boiler: South FD fan erection PA fan start
Boiler: North FD fan erection PA fan start
Boiler Back Pass
Boiler Back Pass
Boielr Furnace area
Boiler Mills & Coal piping
Boiler mills Bay
Turbine Hall: +14 m slab casted (south)
Turbine Hall: Shaftline from Generator side
Generator area
LP Turbine Outer Lower casing
LP Turbine Outer Lower casing
Feet for Bearing 3 (LP / IP)
Bearing 2 (HP/IP)
Bearing 2 & 3 for IP Turbine
General View +14 m slab from North (HP Turbine side)
FWT / Dearator @ +14 m
Condenser Upper neck section lifted for sliding
Condenser Upper neck section lifted for sliding
Turbine Hall : Baby Turbine structure to start

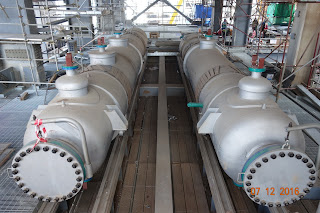

Turbine Hall : +6m: LP Heaters

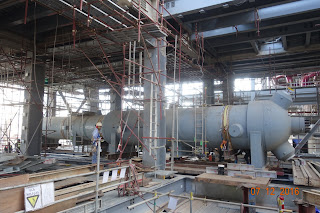

Turbine Hall : +6m: HP Heaters
Turbine Hall : 0m : Perimeter block work starting
Turbine Hall : 0m : equipment fondation (FW Booster pump)
Turbine Hall : 0m : skiding base for condenser
Turbine Hall: Condenser Pit: Hotwell below skiding tracks
Turbine Hall : 0m : Bays to loading bay: concrete sab on going
B30: Central Electrical Building
B30: Central Electrical Building : Cable cellar 0 m
B30: Central Electrical Building : 1st Floor : MV Room
B30: Central Electrical Building : 1st Floor : MV Room
B30: Central Electrical Building : 1st Floor : MV Room
B30: Central Electrical Building : cable elevation
B35: Boiiler Electrical Building
ESP: Stub Columns for hoppers erection
ESP: hoppers erection
ESP: hoppers erection
WFGD area: structure & ducting erection
WFGD area: Booster Fan erection
WFGD area: Booster Fan casing
WFGD area: L06/07 Building
WFGD area: Absorber shell erection
WFGD area: Pupms area
Stack exterior painting
Stack interior boresilicate
E 06 : Water treatment & Filtration Building
Transfer station + pipe rack
Fuel Oil Tank Erection
